Product Code : EMC 100 140 00

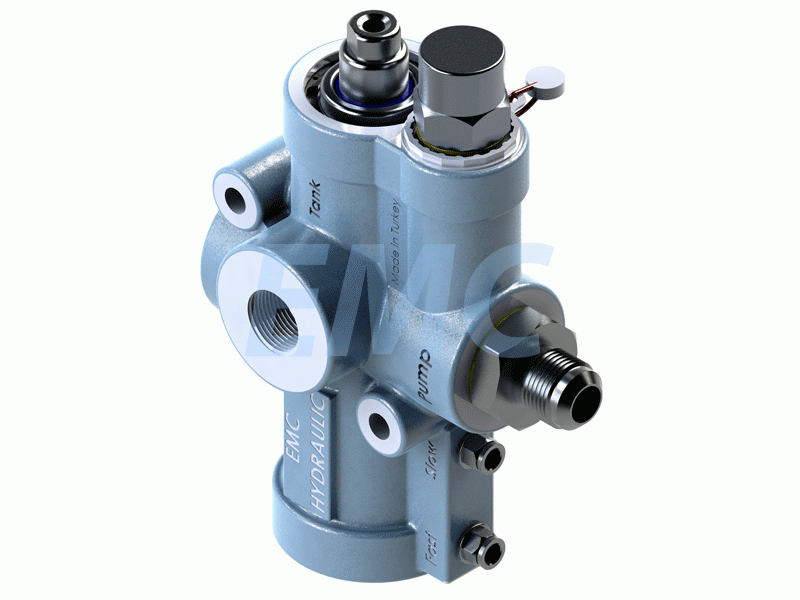

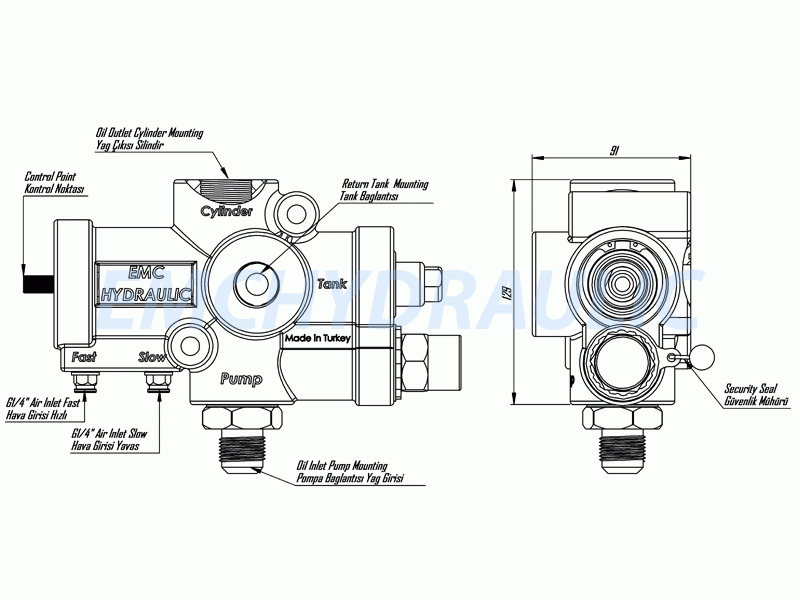

Product Name : Hydraulic Control Valve 3/4
- Displacement(cm3)140
- Fluid Temperature C°-10+90
- N. Working Pressure200 Bar
- Test Pressure (60 Sec.)320 Bar
- Pne. Working Pres.(bar) 7-12
- Viscosity cSt12+100
- Control TypePneumatic
- Oil Inlet1
- Oil Outlet3/4
- Weight8,2 Kg
