Power Take Off / Pto Zf Group
Power Take Off ZF 1 6 S 850 Standart
  • Power Take Off ZF 1 6 S 850 Standart
  • Power Take Off ZF 1 6 S 850 Standart
  • Power Take Off ZF 1 6 S 850 Standart
Product Code : EMC 201 122 2

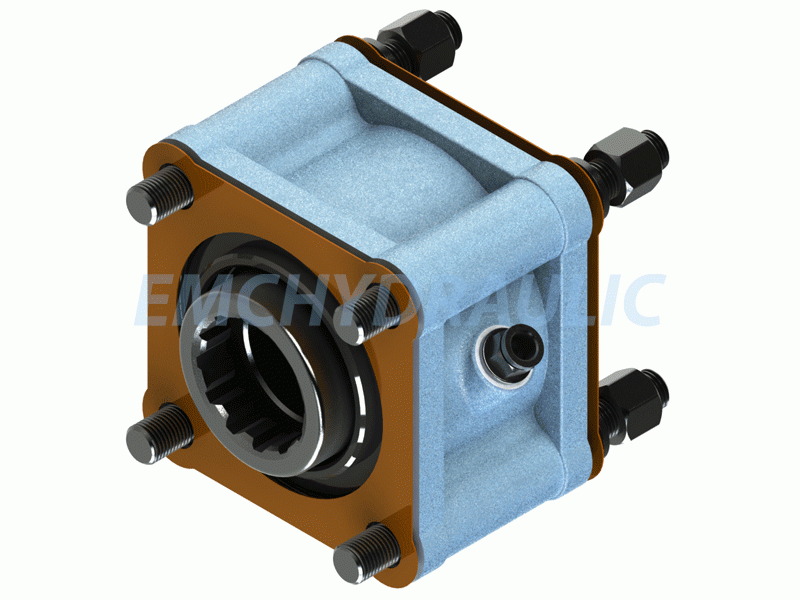

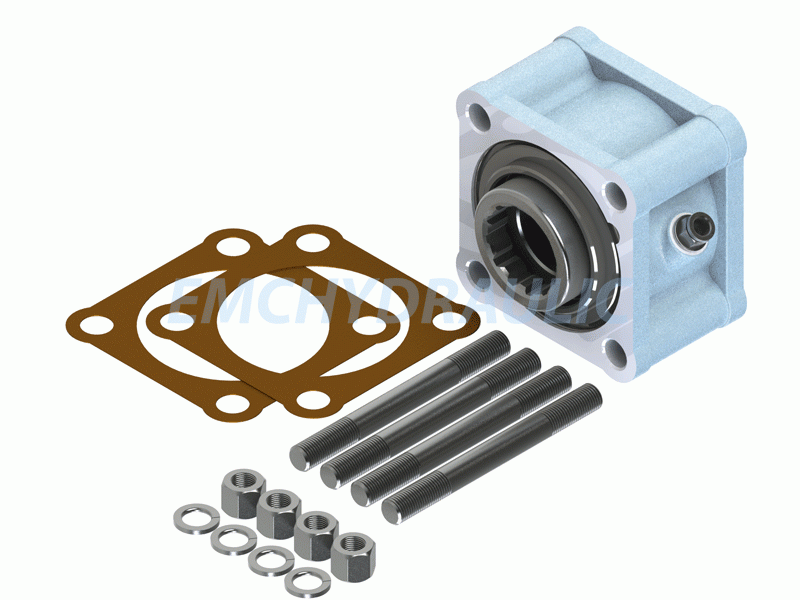

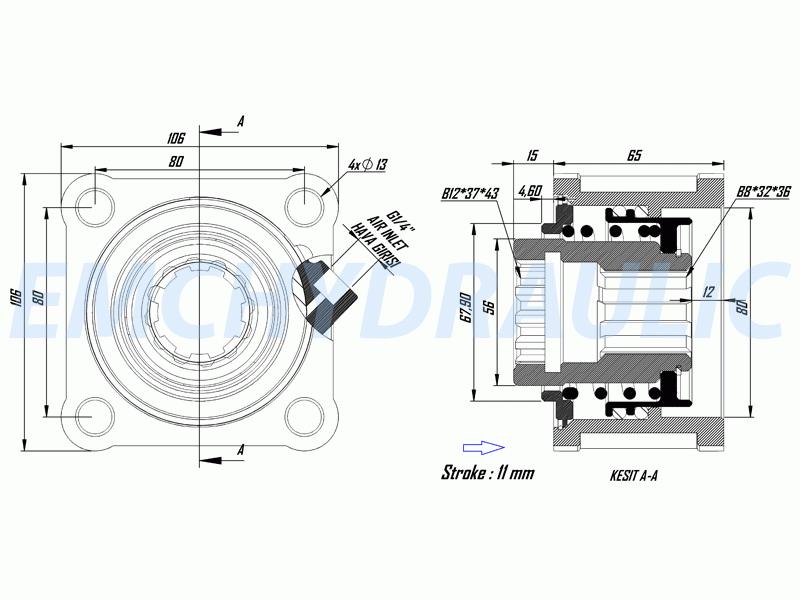

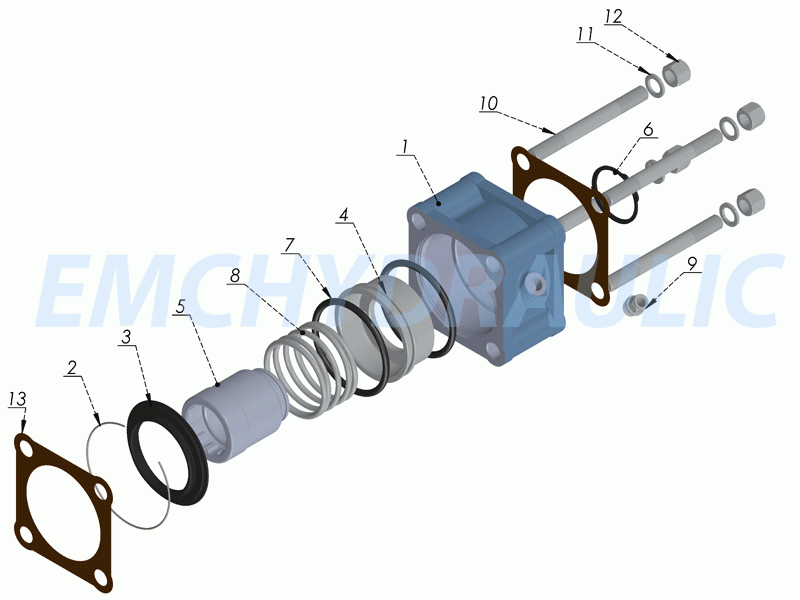

Product Name : Power Take Off ZF 1 6 S 850 Standart
Main Gearbox : 6 S 850* 44*6 AS 700*6 S 36*6 S 700*6 S 700 TO*6 S 850 DT*6 S 850 OVD*ZIL 4331 M4
  • Control TypePneumatic
  • Pne. Working Pres.(bar) 7-12
  • RotationRight
  • Pto Output TypeISO
  • Mounting DiameterRear Type
  •
  • Fluid Temperature C°-10 +90
  • Torque Kgm39
  • Rotation1/1
  • Weight Kg3,6

The rotation of the pump has to be opposite with the rotation of PTO
